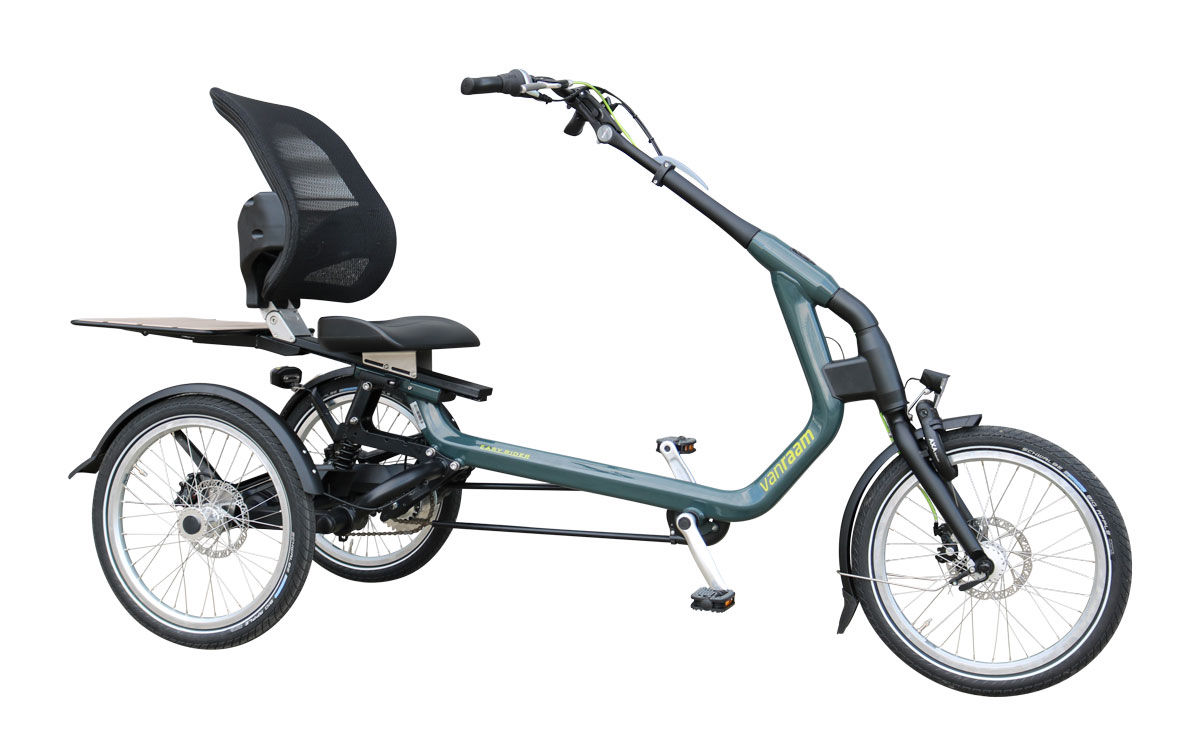

Van Raam Easy Rider Compact Tricycle

Easy Rider Compact Tricycle

Van Raam Easy Rider Compact is a compact trike with a seat on which you can cycle very easily.
This comfortable tricycle is suitable for small adults and large children. The tricycle has both a compact look & compact dimensions.
The Easy Rider Compact has similar riding characteristics as the Easy Rider tricycle. The main difference being that the Easy Rider Compact is a lot more compact. The unique frame allows for a low entry level and a lower centre of gravity. The forward pedalling motion and suspension in the seat ensure perfect riding comfort, making short but also longer distances comfortable. The seat of the seated tricycle is adjustable. Easy Rider Compact trike is suitable for an inner leg length of approximately 63 to 81 cm. Which does corresponds to a body height of about 1.40 to 1.70 metres.
Design
The Easy Rider Compact has a compact design, due to a small front wheel and larger rear wheels.
This seated trike also has a narrower handlebar and shorter cranks than the Easy Rider.
There are standard anti-tip wheels at the back of the frame. In normal use, on flat road surfaces, you will not tip over backwards.
If the bike reverses on a steep slope (maximum 10%) and you then apply the brakes, the bike could tip over. The anti-tipping wheels will ensure you don't tip over backwards.
Check the user manual of the Easy Rider Compact for all safety measures for cycling on a slope.
Most  of all cables run through the trike frame. This not only looks better, but also gives the cables extra protection.
In addition, the Easy Rider Compact has a chain hose instead of a chain guard which contributes to a modern and minimalist design.With the Easy Rider Compact, a luggage frame is mounted on the backrest. A single-sided pannier can easily be attached to the pannier rack. You can also easily take it off when doing groceries, or simply use it to store personal items while cycling.
The luggage frame can accommodate almost single-sided panniers. The optional  spare battery on this trike is placed sideways on the bicycle, between the two rear wheels.
The battery rail is therefore made so that the battery only has to be partially slid onto the carriage and can easily be removed.
Options
Thanks to the various options:
  Mirror,
Footrests
Stick holder
Larger battery
 The standard colour wine red matt (RAL 3005), but it is of course also available in another frame colour of your choice as a cost option.
Smart e-bike Option

With optional pedal support, the Easy Rider Compact becomes a smart e-bike.
With the new Silent smart display, among other things, you can easily set the desired level of support. The information screen displays current cycling information, such as speed and remaining battery capacity. Van Raam's Silent electric system is equipped with a starting aid, giving you extra support when cycling away.

Specification:

Item code392-0000
Average range (default battery)50 km
Min-max range (default battery)29 - 94 km
Inside leg length63-81 cm
Boarding height32 cm
Weight without electrical system*39 kg
Weight with electrical system*51.2 kg
Cycle length174 cm
Cycle width73 cm
Wheel size front16"
Wheel size back20"
Standard color(RAL 3005) Wine red matt
2nd color (extra charge)(RAL 7002) Olive grey matt
3rd color (extra charge)(RAL 7043) Traffic grey B matt
RAL color of choiceYes
Maximum driver weight100 kg
Maximum luggage carrier weight10 kg
Possible separable frameNo

*This bicycle's weight can vary based on its different options.
TricycleTricycle Width
Easy Rider78 cm
Easy Rider Compact73 cm
Easy Rider Compact Small73 cm
Easy Sport80 cm
Easy Sport Small77 cm
Midi75 cm
Maxi75 cm
Maxi Comfort75 cm
Easy Go72 cm
