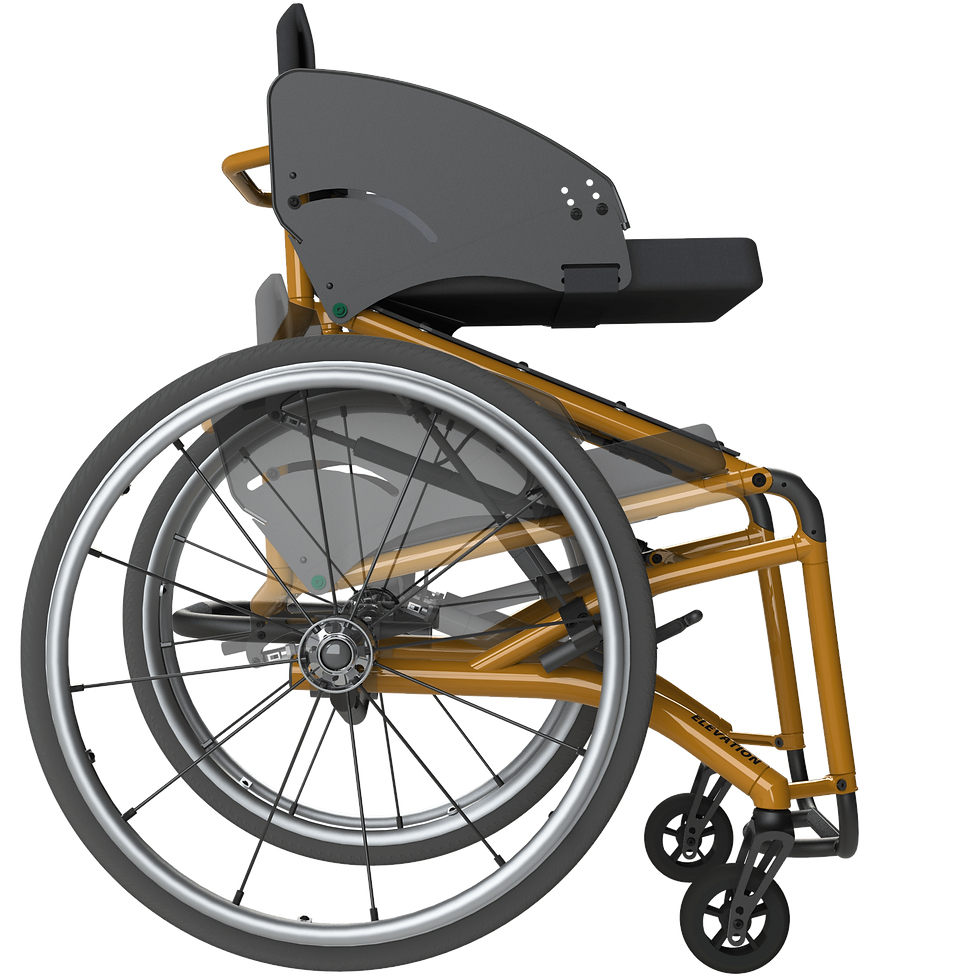

PDG Elevation Ultra-Light wheelchair gas strut lift

Elevation Ultra-Light wheelchair crash-tested with a great seat lift
The unique wheelchair with advanced features is available to enhance using a standard wheelchair. Made by PDG Mobility the Elevation Ultralight wheelchair allows its users to embrace daily living mobility-related activities by quickly adapting their seating position to their mobility needs through on-the-fly seat height and back angle adjustment.
Weight-matched gas strut suspension
The gas springs used in dynamic seat height adjustment are selected and positioned for the user’s weight at point of manufacturing .
Dynamic seat height
Optimised to the user’s unique requirements and comfort and on-the-fly seat height adjustment and backrest recline.
Centre of Gravity
Adjustable centre of gravity positioning allowing for improved stability or manoeuvrability to suit the user’s mobility needs.
Anti-Shear seating insert
The optional rigid-articulating side guards allow for superior lift and stability when in elevated seat positions.
Dynamic seat height adjustment (anterior/posterior tilt)
Gas strut suspension
Stability system
On-the-fly fully adjustable back-angle
Center of gravity axle adjustment
Wide range wheels, rim and tire options
Anti-shear side guard system
Fold-down back
Ultralight aluminium construction

Specification

Dynamic Tilt
35°
Maximum User Weight
113 kg | 250 lbs
Seat Width
12 - 19" | 30 - 48 cm
Seat Depth
14 - 20" | 35 - 51 cm
Seat Height
18 - 21" | 46 - 53 cm
Backrest Recline
84° - 120°
Overall Width
SW + 9” | 23 cm
Overall Chair Weight
10 kg | 22 lbs
Transit tie downs
WC-19 & ISO-7176-19
